Description
Barco ClickShare CSE-200+ Jeddah
The Barco ClickShare CSE-200+ wireless presentation systems allow up to 2 persons to share content simultaneously. Users simply plug a USB-powered device, the ClickShare Button into their PC or Mac and click the button to get the content from their laptop on the large meeting room screen. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have the latest firmware installed on your Base Unit to enable the best experience with the Desktop App.
The Barco ClickShare CSE-200+ Jeddah was designed for enterprise rollouts. It offers an HDMI input for legacy equipment, easy switching between wireless and wired sources, enhanced security features, full network integration, a wide range of interactivity features including annotation, blackboarding and touchback support on a 4K canvas and central management. Allowing up to 2 persons to share content simultaneously, the ClickShare CSE-200+ Jeddah encourages brainstorming and productivity in your enterprise. The ClickShare CSE-200+ Jeddah is a product created with ISO 27001 certified flows and processes. Adding ClickShare CSE-200+ to your fixed conference room set-up (like a Microsoft Teams or Zoom room) enhances interactivity, productivity and collaboration in your Microsoft Teams and Zoom meetings. It brings the focus from conferencing back to truly collaborating.
Barco ClickShare CSE-200+ Key features:
- Up to 2 users on-screen
- Share from laptop, tablet or smartphone
- Smooth switching between wired and wireless sources
- Enhanced security features
- Annotation, blackboarding and touch back support on a 4K canvas
- Central management

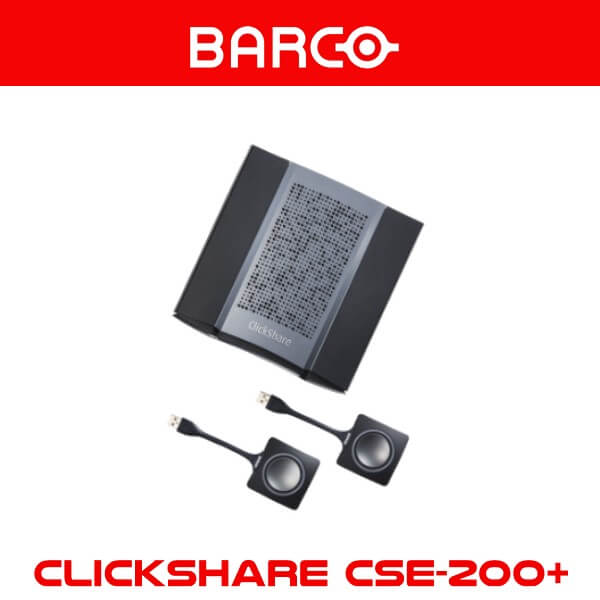

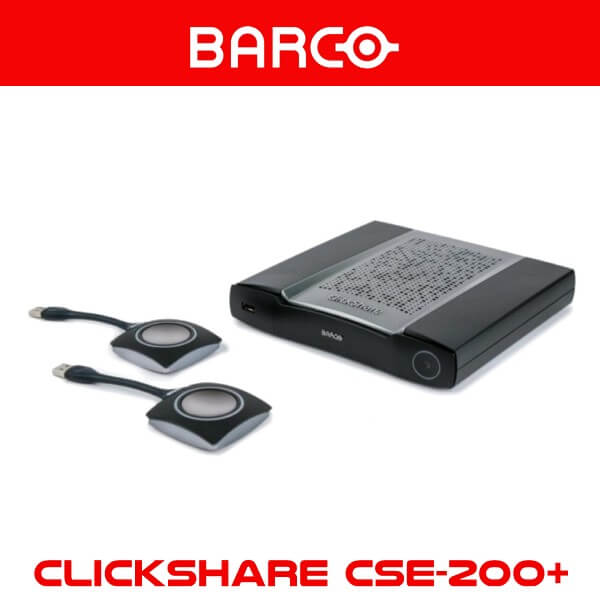

- Delivered with 2 Buttons
Barco ClickShare CSE-200+ Specifications

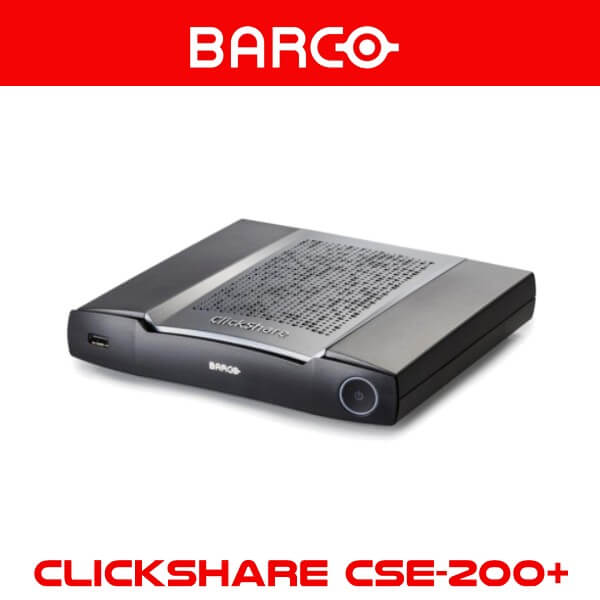

ClickShare Base Unit dimensions
- Dimensions (HxWxD): 39mm x 200mm x 202mm
- Power supply: Standard 110/220 V AC plug
- Power consumption: Operational: 50W (max), Standby: <8W (networked standby), < 0.5W (deep standby mode)
- Weight: 900 gr
General specifications
- Operating system:
- Windows 7/8/8.1/10 32 & 64 bit
- macOS 10.14/10.15 (Catalina)
- Android 9 & 10 (ClickShare app)
- iOS 11, 12 & 13 (ClickShare app)
- Video outputs: 1x HDMI 1.4b
- Video inputs: 1x HDMI 1.2
- Output resolution: 4K UHD (3840*2160) @ 30Hz
- Input resolutions: 1920×1080 @60Hz
- Audio: Via HDMI, analog via Audio Jack 3.5mm, S/PDIF
- AirPlay Support: iOS 11, 12 & 13 / macOS 10.14, 10.15
- Google Cast Support: Android 9, 10
- Miracast support: Miracast R2 support on Windows 10
- Frame rate: Up to 30fps*
- Number of sources simultaneous on screen: 2
- Number of simultaneous connections: 16
- iPad, iPhone and Android compatibility: Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app
- Extended desktop: Available for Windows, requires ClickShare Extension Pack.
- Authentication protocol: WPA2-PSK in stand-alone mode, WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless transmission protocol: IEEE 802.11 a/b/g/n/ac and IEEE 802.15.1
- Reach: Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
- Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
- Connections:
- 1x Ethernet LAN 1Gbit,
- 1x USB Type-C 2.0 (back)
- 2x USB Type A 2.0 (back)
- 1x USB Type A 2.0 (front)
- Audio analog line out on mini jack socket (3.5mm)
- digital S/PDIF
- Noise Level: Max. 25dBA @ 0-30°C, Max. 30dBA @ 30-40°C
- Temperature range: Operating: 0°C to +40°C (+32°F to +104°F), Max: 35°C (95°F) at 3000m, Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity: Storage: 0 to 90% relative humidity, non-condensing, Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system: Kensington lock
- Certifications: FCC/CE
- Warranty: 3years standard
