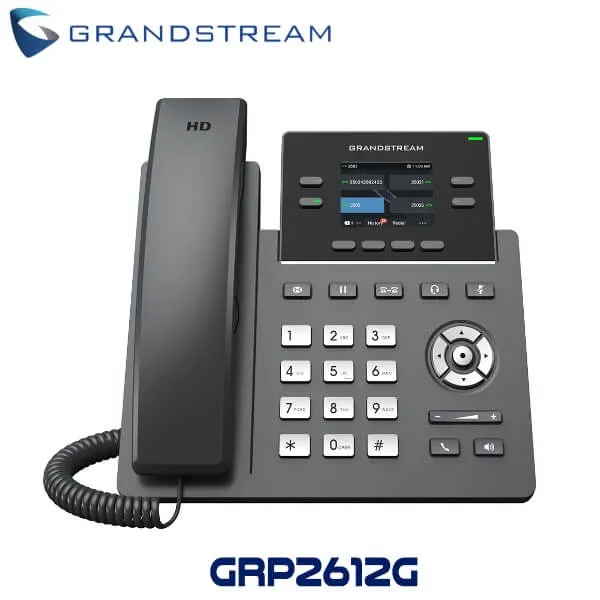

Grandstream GRP2612G Jeddah
Features :
- Grandstream GRP2612G Jeddah supports 2 SIP accounts and 4 multi-purpose line keys
- Swappable faceplate to allow for easy logo customization
- HD audio supporting all major codecs, including wideband codecs G.722 and Opus
- Up to 16 digital BLF Keys
- Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE (GRP2612G)
Wall-Mountable
The Grandstream GRP2612G Jeddah is a wall-mountable device that comes with an adjustable base stand. The base stand offers easy installation at two different angles, not only resulting in a neat and clean workspace but also delivering a comfortable viewing angle.
Supports the use of Headsets
The Grandstream GRP2612G Jeddah comes with an auxiliary RJ9 headset jack which allows EHS with Plantronics headsets. Using headsets enables the user to enjoy a hands-free mode during calls, therefore experiencing maximum mobility.
Supports Power over Ethernet
The Grandstream GRP2612G Jeddah is equipped with dual switched Auto-sensing 10/100Mbps ports which are integrated with Power over Ethernet to allow for convenient installation and a variety of remote features including provisioning, status monitoring and handset firmware upgrades.
Grandstream GRP2612G Specifications
Protocols/Standards
- SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Graphic Display
- 4 inch (320×240) TFT color LCD
Feature Keys
- 4 line keys with up to 2 SIP accounts
- 4 XML programmable context sensitive softkeys
- 5 navigation/menu keys
- 9 dedicated function keys for : MESSAGE(with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL
Auxiliary Port
- RJ9 headset jack (allowing EHS with Plantronics headsets)
Voice Codecs and Capabilities
- Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO)
Telephony Features
- Hold, transfer, forward, 3-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 1000 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
HD Audio
- Yes, HD handset and speakerphone with support for wideband audio
Base Stand
- Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)
QoS
- Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
- User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot.
Multi-language
- English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more
Upgrade/Provisioning
- Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
Power & Green Energy Efficiency
- Universal power adapter included : Input :100-240V ; Output : +5V, 0.6A ; Integrated Power-over-Ethernet(802.3af) Max power consumption 3W(power adapter) or 3.8W(PoE) (*PoE for 2612P only)
Temperature and Humidity
- Operation : 0°C to 40°C Storage : -10°C to 60°C Humidity : 10% to 90% Non-condensing
Package Content
- GRP2612 phone, handset with cord, phone stand, 5V power adapter (*with GRP2612 only), network cable, Quick Installation Guide, GPL license
Physical
- Dimension : 203mm x 193mm x 52.1mm ; Unit weight :554g ; Package weight : 936g
