Description

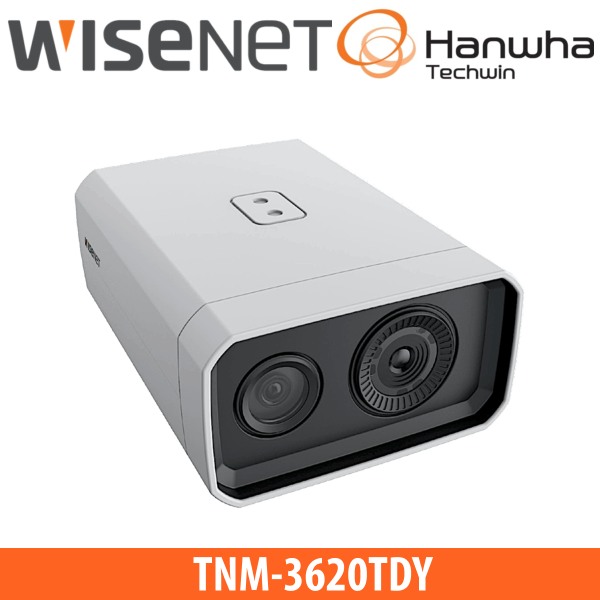

WISENET TNM-3620TDY Temperature Detector Thermal Camera Jeddah
It features Immediate alarms that notify operators, also Reduces false alarms by ignoring other heat sources with AI-based face detection, even while wearing a mask. It works with accuracy within ±0.5°C (±0.9°F), ±0.3°C (±0.54°F) with blackbody. This Temperature Detector Thermal Camera gives Verification and identification of the subject with the visible camera.
WISENET TNM-3620TDY FEATURES
- Dual sensor camera with QVGA thermal & 2MP visible video outputs
- Built-in 4.7mm fixed lens (thermal), 4mm fixed lens (visible)
- AI Face & temperature detection analytics including temperature & face overlay and alerts, detects people even while wearing a mask
- Estimated Body Temperature Mode: +30°C~+45°C (+86°F~+113°F) / ±0.5°C (±0.9°F), ±0.3°C (±0.54°F) with blackbody
- Normal Radiometric mode: -20°C~+130°C (-4˚F~+266˚F) / ±5˚C(≤+100˚C), ±20%(>+100˚C) ±9˚F(≤+212˚F), ±20%(>+212˚F)
- Micro SD/SDHC/SDXC memory slot (Maximum 512GB)
- Integration of visible camera face detection with thermal camera Elevated Body Detection
- PoE+, 12VDC powered
WISENET TNM-3620TDY SPECIFICATIONS
- VIDEO
- Imaging Device: Thermal (Uncooled microbolometer), visible (1/2.8” 2MP CMOS)
- Effective Pixels : Thermal (320(H) x 240(V)) , visible (1945(H) x 1109(V))
- Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation USB : Micro USB Type B, 1280 x 720 for installation
- LENS
- Focal Length : 4.7mm and 4mm fixed focal
- Minimum Object Distance : 1m (3.28ft)
- Focus Control : Fixed
- OPERATIONAL
- Camera Title : Displayed up to 85 characters
- Digital Image Stabilization : Support (built-in gyro sensor)
- Motion Detection : 8ea, 8point polygonal zones (TBD)
- Privacy Masking : 32ea, polygonal zones / – Color: Grey/Green/Red/Blue/Black/ White / Mosaic
- Video Rotation : Flip, Mirror
- Analytics: Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, AI Temperature detection (High/Low Body Temperature, Face), Shock detection
- Alarm I/O : Input 1ea / Output 2ea
- Alarm Triggers : Analytics, Network disconnect, Alarm input
- Audio In : Selectable (microphone in/line in) Supply voltage : 2.5VDC(4mA), Input impedance : 2K Ohm
- Audio Out : Line out, Maximum output level : 1Vrms
- ENVIRONMENTAL
- Operating Temperature / Humidity : Estimated Body Temperature Mode : +10°C~+35°C(+50°F~+95°F) / Less than 95% RH Normal mode : -10°C~+60°C(+14°F~+140°F) / Less than 95% RH
- Storage Temperature / RH Humidity : -30°C~+60°C (-22°F~+140°F) / Less than 95%
- ELECTRICAL
- Input Voltage : PoE+ (IEEE802.3at)(TBD), 12VDC
- Power Consumption : Max. (TBD)W, typical (TBD)W 12VDC: Max. (TBD)W, typical (TBD)W
- MECHANICAL
- Color / Material : TBD / Aluminum (TBD)
- RAL Code : (TBD)
- Product dimensions : 135 x 75 x 180mm (TBD) (5.31” x 2.95” x 7.09”)
- Weight / Mounting : 1/4 – 20 UNC top & bottom
