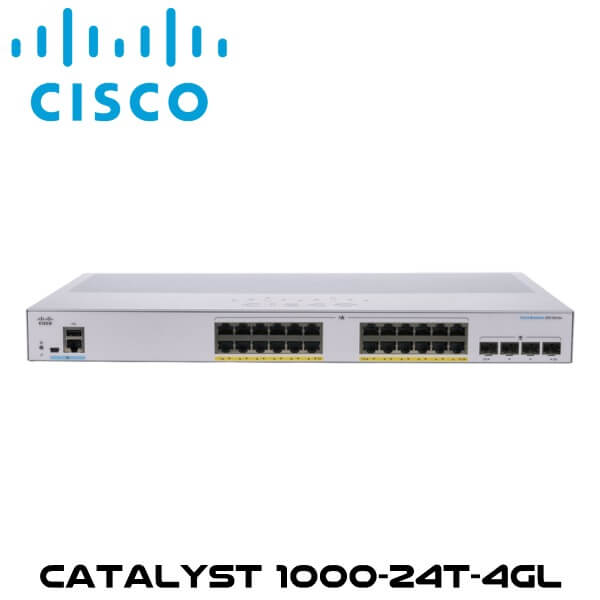

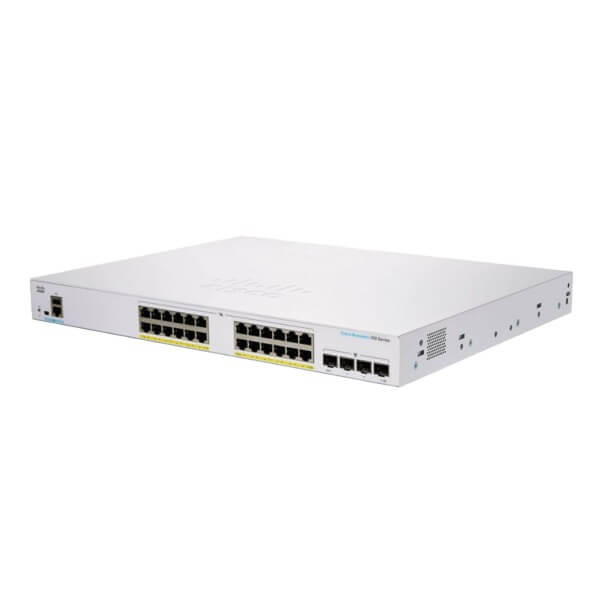

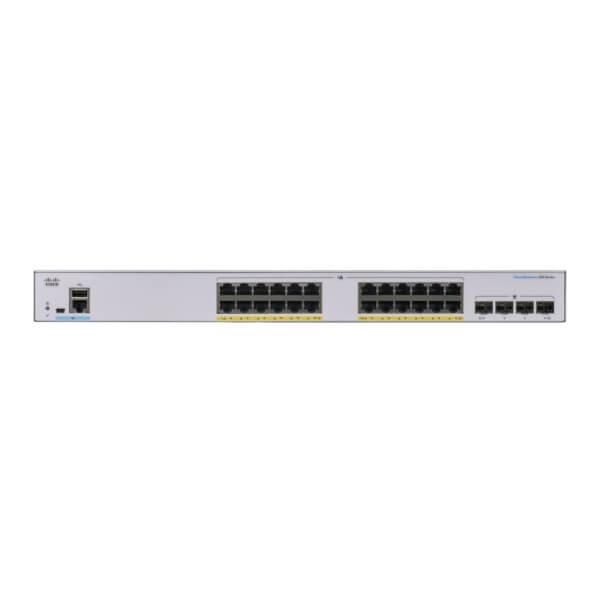

Cisco Catalyst1000-24T4GL Network Switch Jeddah
Cisco Catalyst1000-24T4GL Jeddah Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Features
- Perpetual PoE+ support with a power budget of up to 740W
- CLI and/or intuitive web UI manageability options
- Network monitoring through sampled flow (sFlow)
- Cisco Catalyst1000-24T4GL Jeddah has security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
- Compact fanless models available with a depth of less than 13 inches (33 cm)
- *Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
- Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)
Technical Specs
| Product Code | C1000-24T-4G-L |
| Description | 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks |
| Gigabit Ethernet ports | 24 |
| Uplink interfaces | 4 SFP |
| PoE+power budget | \ |
| Fanless | Y |
| Dimensions (WxDxH in inches) | 17.5 x 9.45 x 1.73 |
| CPU | ARM v7 800 MHz |
| DRAM | 512 MB |
| Flash memory | 256 MB |
| Forwarding bandwidth | 28 Gbps |
| Switching bandwidth | 56 Gbps |
| Forwarding rate(64—byte L3 packets) | 41.67 Mpps |
