Description

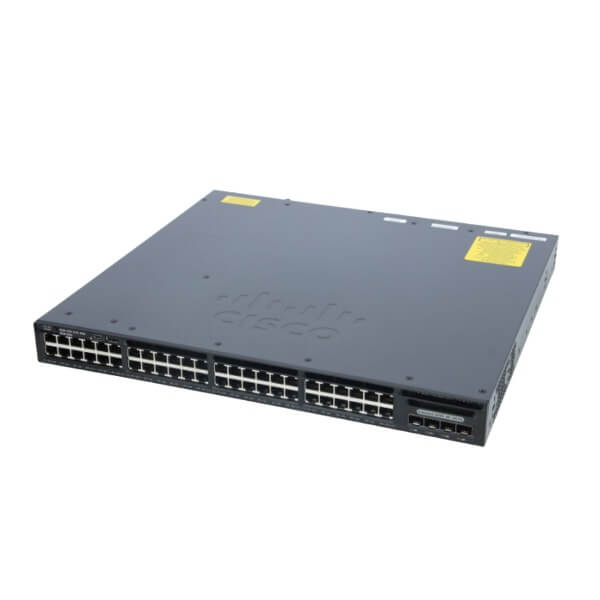

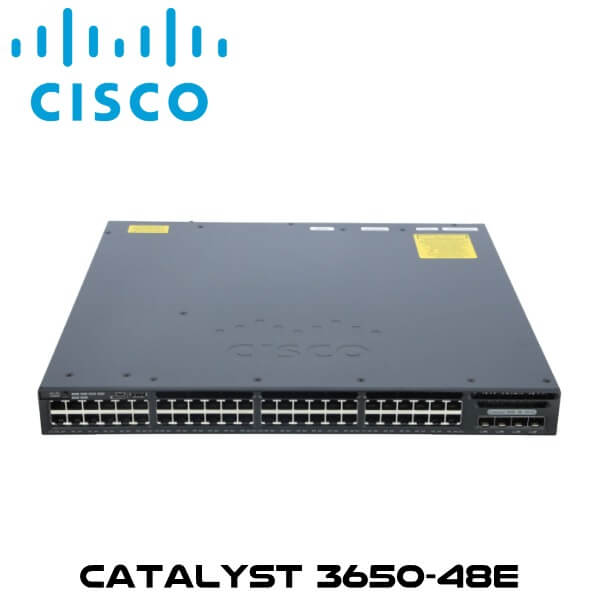

Cisco Catalyst3650-48E Network Switch Jeddah
The Cisco Catalyst 3650 series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst3650-48E Jeddah is built on the advanced Cisco StackWise -160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Features
- Cisco Catalyst3650 is integrated with wireless controller capability with :
- Up to 40G of wireless capacity per switch (48-port models)
- Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
- 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
- Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
- Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput

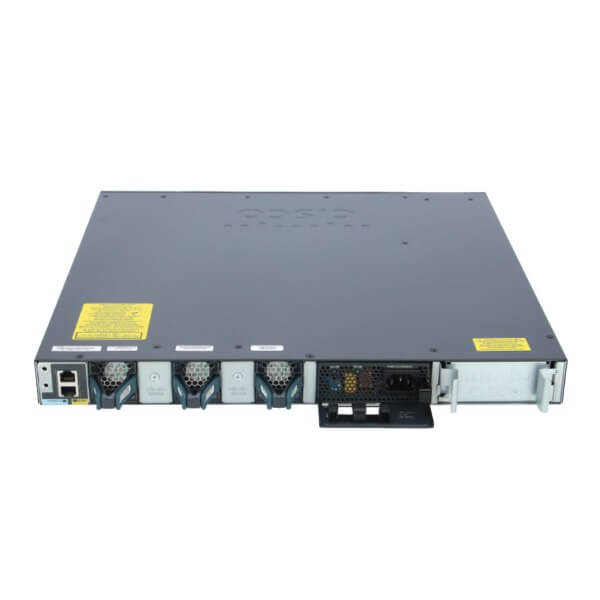

- Dual redundant, modular power supplies and three modular fans providing redundancy
- Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
- Cisco Catalyst3650-48E Jeddah has built-in Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
- Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
- Cisco Catalyst3650-48E Jeddah is integrated with enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
Technical Details
- 16.80 lb(s)
-
- 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports.
- Three fixed-uplink models with 4x Gigabit Ethernet, 2x 10 Gigabit Ethernet, or 4x 10 Gigabit Ethernet ports.
- Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features.
-
- Ports : 48
- switch, rack mounting kit, documentation
-
- Color : Black
- Warranty Period : Limited lifetime
-
- RAM (installed) : 4GB
- 4GB RAM, 2GB Flash
- 1.7″h x 17.5″w x 17.6″d
-
- (48) PoE+
- (1) USB Type A
- (1) RJ-45 Serial
- (1) RJ-45 LAN
- (1) Mini USB Type B
- (2) SFP+
-
-
- Networking Protocol : PoE+
- Networking Protocol : SSH
- Networking Protocol : IEEE 802.3
- Networking Protocol : IEEE 802.3u
- Networking Protocol : IEEE 802.3z
- Networking Protocol : IEEE 802.1D
- Networking Protocol : IEEE 802.3ab
- Networking Protocol : IEEE 802.1p
- Networking Protocol : IEEE 802.3af (PoE)
- Networking Protocol : IEEE 802.3x
- Networking Protocol : IEEE 802.3ad
- Networking Protocol : IEEE 802.1w (RSTP)
- Networking Protocol : IEEE 802.1x
- Networking Protocol : IEEE 802.3at
- Remote Management Protocol : CLI
- Remote Management Protocol : RMON 1
- Remote Management Protocol : RMON 2
- Remote Management Protocol : RMON 3
- Remote Management Protocol : RMON 9
- Remote Management Protocol : SNMP 1
- Remote Management Protocol : SNMP 2c
- Remote Management Protocol : SNMP 3
- Remote Management Protocol : Telnet
- Remote Management Protocol : SSH
- Routing Protocol : Static IP routing
-
- Due to manufacturer restrictions, all sales on this item are final.
- 1 lbs
-
- Compliant Standards : RoHS
- Compliant Standards : KCC
- Compliant Standards : FCC Part 15 A
- Compliant Standards : VCCI Class A
-
- 43222612
- Limited Lifetime
- Limited Lifetime
