Description

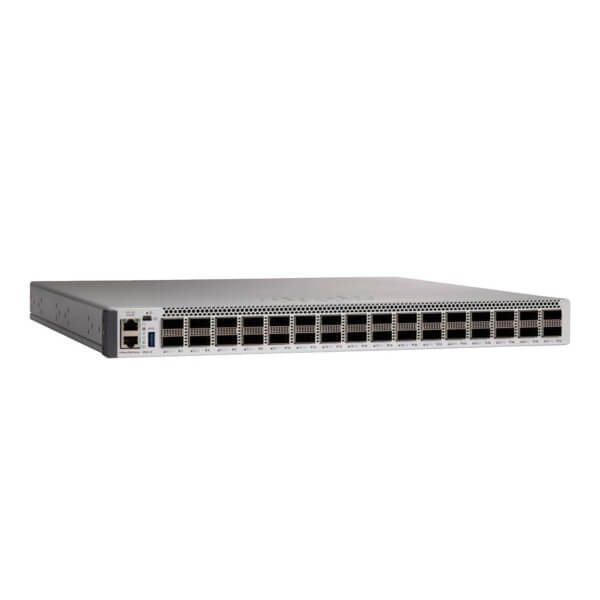

Cisco Catalyst9500-32C Network Switch Jeddah
The Cisco Catalyst9500-32C Jeddah Ethernet Switch is part of the Cisco Catalyst 9500 Series switches and are among the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The C9500-32C comes with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Cisco Catalyst 9500 Series is the industry’s first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches for the enterprise campus. The Cisco Catalyst9500-32C Jeddah switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core.
Features
- Simplified device deployment
- Unified management of wired and wireless networks
- Network virtualization and segmentation
- Group-based policies
- Context-based analytics
- Up to 6.4-Tbps switching capacity with up to 2 Bpps of forwarding performance
- Platinum-rated AC/DC power supplies
- Up to 512,000 Flexible NetFlow (FNF) entries in hardware
- Intel® 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based application hosting
- SD-Access for policy-based automation from edge to cloud
Technical Specs
| Product Name | Catalyst 9500 32 Port 100G Only Advantage |
| Manufacturer Part Number | C9500-32C |
| Product Type | Layer 3 Switch |
| Manageable | Yes |
| Ethernet Technology | 100 Gigabit Ethernet |
| Number of Total Expansion Slots | 32 |
| Product Family | Catalyst 9500 |
| Stack Port | Yes |
| Media Type Supported | Optical Fiber |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | QSFP28 |
| Form Factor | Rack-mountable |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Compatible Rack Unit | 1U |
| Modular | Yes |
| Shared SFP Slot | No |
| Port / Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| Height | 1.7″ |
| Width | 17.5″ |
| Depth | 21.2″ |
| Product Series | 9500 |
| Product Model | C9500-32C |
| Network Technology | 100GBase-X |
| Product Line | Catalyst |
