Description

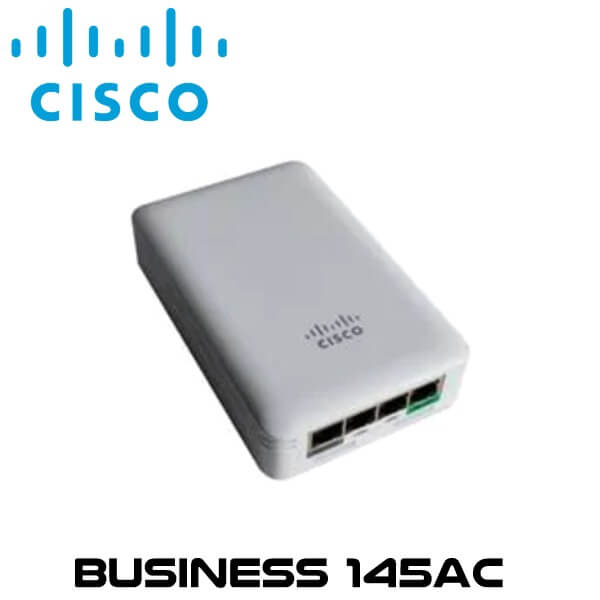

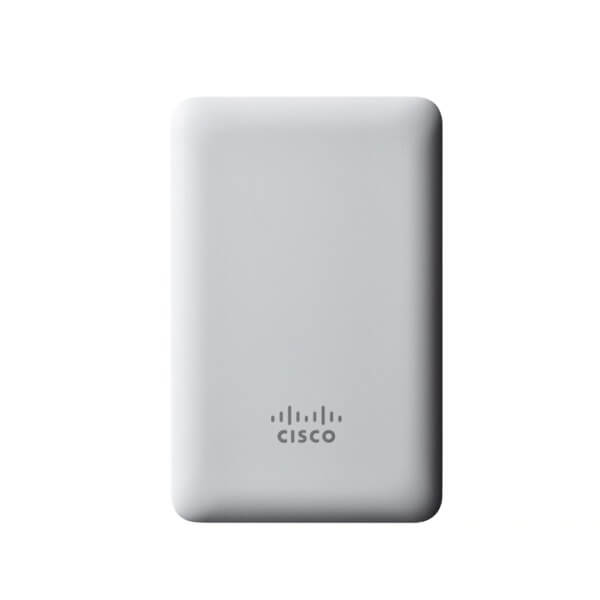

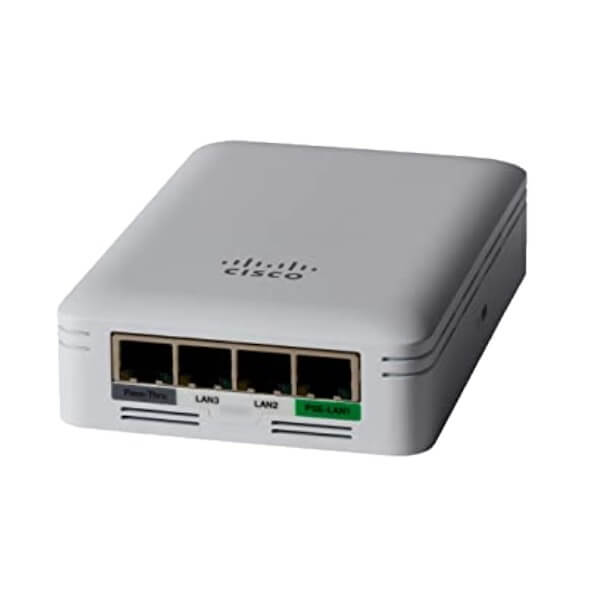

Cisco Business145AC Access Point Jeddah
The Cisco Business145AC Jeddah provides converged access, ideal for small hospitality, retail, office, and educational environments. High performance MU-MIMO (2×2) access points deliver enterprise-grade wireless for small businesses. Embedded Power over Ethernet (PoE) port provides additional connectivity support. Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.
Features:
- Performance: Enterprise-grade MU-MIMO (2×2) performance delivering highly secure and reliable wireless connectivity for small businesses
- Deployment: Cisco Business145AC Jeddah allows for flexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)
- Flexibility: Mix and match with Cisco Business Wireless access points and mesh extenders to increase your Wi-Fi coverage
- Set Up In Minutes: Simplify management and monitor your network from Cisco Business Mobile app or web browser
- Advanced Security: Cisco Business145AC Jeddah includes enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
- Network Access: Prioritize network access based on use cases (i.e. point of sales, surveillance) or guest privileges
Specifications
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
| MU-MIMO Support | 2 x 2 |
| WLAN Mode | Wi-Fi 5 (802.11ac) |
| Antenna Gain | 2 to 3 dBi |
| Transmit Power | 20 dBm |
| Supported Protocols | RADIUS |
| Antenna Placement | Internal |
| Bluetooth | None |
| Throughput |
|
| Interface | |
| Ports |
|
| USB Sharing Support | No |
| Security | |
| Guest Network Support | Yes |
| Wireless Security | WPA, WPA2, WPA3 |
| Lock Slot | Yes |
| Management | |
| Operation Modes | Access Point |
| Supported Clients | 400 |
| Hardware | |
| RAM | 1 GB |
| Storage Capacity | 256 MB |
| CPU | 710 MHz Quad-Core |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11b, 802.11d, 802.11g, 802.11h, 802.11i, 802.11n, 802.11r, 802.1x, 802.3af, 802.3at |
| Electrical | |
| Power Consumption | ≤8.5 W |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% |
| Operating Altitude | 9842′ / 3000 m |
| Storage Altitude | 15,000′ / 4572 m |
| General | |
| IP Rating | None |
| Mount Options | Wall |
| Dimensions | 5.5 x 3.5 x 1.2″ / 140 x 89 x 31.5 mm |
| Weight | 9.9 oz / 280 g |
