Description

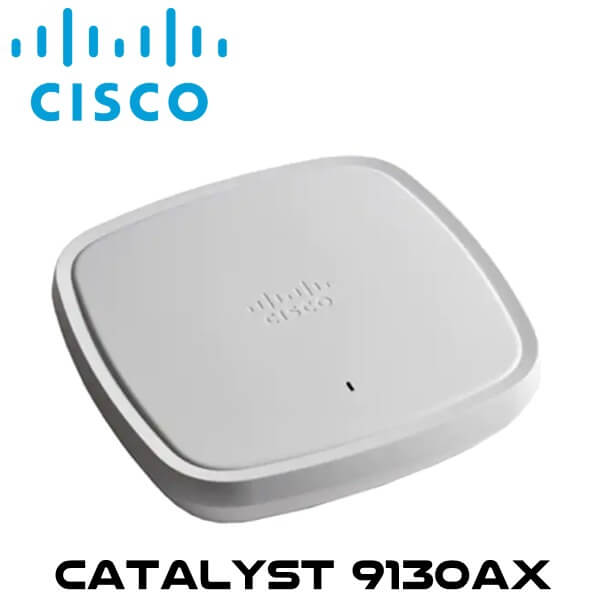

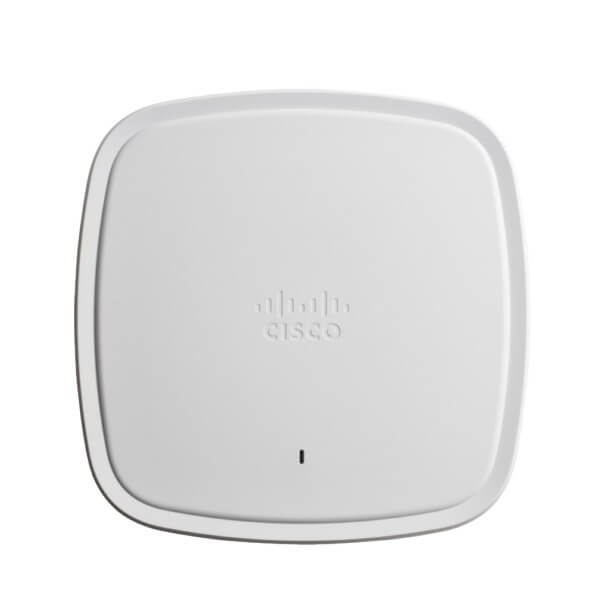

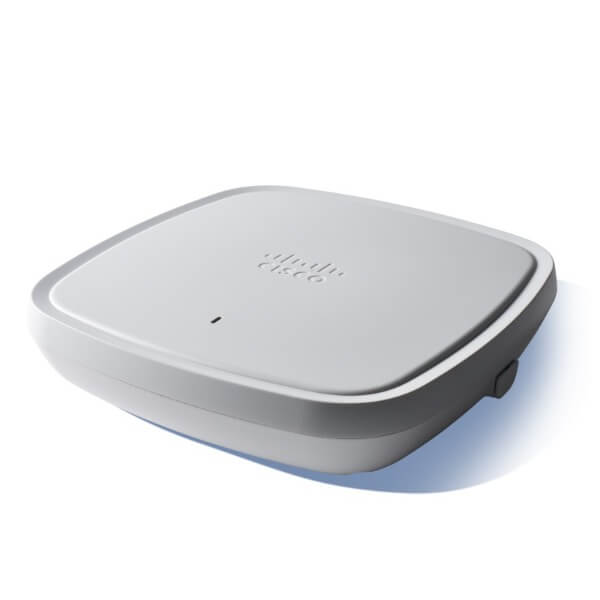

Cisco Catalyst9130AX Access Point Jeddah

Cisco Catalyst9130AX Jeddah Series Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the 9130AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst9130AX Jeddah scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130AX Series is also a leader in performance, security, and analytics.

The Cisco Catalyst9130AX Jeddah Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.

The Cisco Catalyst9130AX Jeddah Access Points support both Orthogonal Frequency-Division Multiple Access (OFDMA) and multiuser multiple input, multiple output (MU-MIMO), delivering more predictable performance for advanced applications and IoT. Additionally, with up to 5 Gbps and NBASE-T and IEEE 802.3bz Ethernet compatibility, the 9130 Series can seamlessly offload network traffic without any bottlenecks.

Key features:

Wi-Fi 6 certified, supporting 802.11ax on both 2.4GHz and 5GHz bands
Up to four Wi-Fi radios: 5GHz flexible radio (single 8×8 or dual 4×4), 2.4GHz (4×4) and Cisco RF ASIC
OFDMA and MU-MIMO
Multigigabit support
Internal and external antenna
Embedded Wireless Controller
Cisco Flexible Radio Assignment and Cisco CleanAir Technology
Four radios: 2.4 GHz (4×4), 5 GHz (8×8 and 4×4), Cisco RF ASIC, and BLE/IoT

Cisco Catalyst9130AX -Technical Details

Software

Catalyst 9130AXI

Cisco Unified Wireless Network Software Release 8.10.x or later
Cisco IOS XE Software Release 16.12.1 with AP Device Pack, or later

Supported wireless LAN controllers

Cisco Catalyst 9800 Series Wireless Controllers
Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

4×4 MIMO with four spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g
20and 40-MHz channels
PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac

8×8 downlink MU-MIMO with eight spatial streams
MRC
802.11ac beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support
WPA3 support

802.11ax

8×8 uplink/downlink MU-MIMO with eight spatial streams
Uplink/downlink OFDMA
TWT
BSS coloring
MRC
802.11ax beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support
WPA3 support

Integrated antenna

2.4 GHz : Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
5 GHz : Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

External antenna with Smart antenna connector

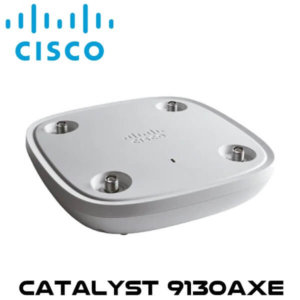

The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz)
Cisco offers the industry’s broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector
Smart antenna connector is a compact multi-RF connector with 8-DART interface
Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector
Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna

Interfaces

1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
Management console port (RJ-45)
USB 2.0 at 4.5W (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

Access point (without mounting brackets):

C9130AXI : 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm)

Environmental

Cisco Catalyst 9130AXI

Non-operating (storage) temperature : -22° to 158°F (-30° to 70°C)
Non-operating (storage) altitude test : 25˚C, 15,000 ft (4600 m)
Operating temperature : 32° to 122°F (0° to 50°C)
Operating humidity : 10% to 90% (noncondensing)
Operating altitude test : 40˚C, 9843 ft (3000 m)

Note : When the ambient operating temperature exceeds 40°C, the access point will shift from 8×8 to 4×4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled.

System memory

2048 MB DRAM
1024 MB flash

Warranty

Limited lifetime hardware warranty

Available transmit power settings

2.4 GHz

23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1 dBm (0.79 mW)
-4 dBm(0.39 mW)

5 GHz

26 dBm (400 mW)
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1 dBm (0.79 mW)

Maximum number of nonoverlapping channels

2.4 GHz

802.11b/g :
- 20 MHz: 3
802.11n:
- 20 MHz: 3
802.11ax:
- 20 MHz: 3

5 GHz

802.11a:
- 20 MHz: 26 FCC, 16 EU
802.11n:
- 20 MHz: 26 FCC, 16 EU
- 40 MHz: 12 FCC, 7 EU
802.11ac/ax:
- 20 MHz: 26 FCC, 16 EU
- 40 MHz: 12 FCC, 7 EU
- 80 MHz: 5 FCC, 3 EU
- 160 MHz 2 FCC, 1 EU

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Compliance standards

Safety:

IEC 60950-1
EN 60950-1
UL 60950-1
CAN/CSA-C22.2 No. 60950-1
AS/NZS60950.1
UL 2043
Class III equipment

Emissions:

CISPR 32 (rev. 2015)
EN 55032 (rev. 2012/AC:2013)
EN 55032 (rev. 2015)
EN61000-3-2 (rev. 2014)
EN61000-3-3 (rev. 2013)
KN61000-3-2
KN61000-3-3
AS/NZS CISPR 32 Class B (rev. 2015)
47 CFR FCC Part 15B
ICES-003 (rev. 2016 Issue 6, Class B)
VCCI-CISPR 32
CNS (rev. 13438)
KN-32
QCVN 118:2018/BTTTT

Immunity:

CISPR 24 (rev. 2010)
EN 55024 + AMD 1(rev. 2010)
EN 55035: 2017
KN35

Emissions and immunity:

EN 301 489-1 (v2.1.1 2017-02)
EN 301 489-17 (v3.1.1 2017-02)
QCVN (18:2014)
QCVN 112:2017/BTTTT
KN 489-1
KN 489-17
EN 60601-1-2:2015
EN 61000-6-1: 2007

Radio:

EN 300 328 (v2.1.1)
EN 301 893 (v2.1.1)
AS/NZS 4268 (rev. 2017)
47 CFR FCC Part 15C, 15.247, 15.407
RSP-100
RSS-GEN
RSS-247

China regulations SRRC

LP0002 (rev 2018.1.10)
Japan Std. 33a, Std. 66, and Std. 71

RF safety:

EN 50385 (rev. Aug 2002)
ARPANSA
AS/NZS 2772 (rev. 2016)
EN 62209-1 (rev. 2016)
EN 62209-2 (rev. 2010)
47 CFR Part 1.1310 and 2.1091
RSS-102

IEEE standards:

IEEE 802.3
IEEE 802.3ab
IEEE 802.3af/at
IEEE 802.11a/b/g/n/ac/ax
IEEE 802.11h, 802.11d

Security:

802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3
802.1X
Advanced Encryption Standard (AES)

Extensible Authentication Protocol (EAP) types:

EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2
Protected EAP (PEAP) v0 or EAP-MSCHAP v2
EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
