Grandstream GHP610 Riyadh

The Grandstream GHP610 Riyadh is offered in two different models with integrated dual-band Wi-Fi support including (GHP610W and GHP611W).

Ask for Quote & Get Low Price

Description

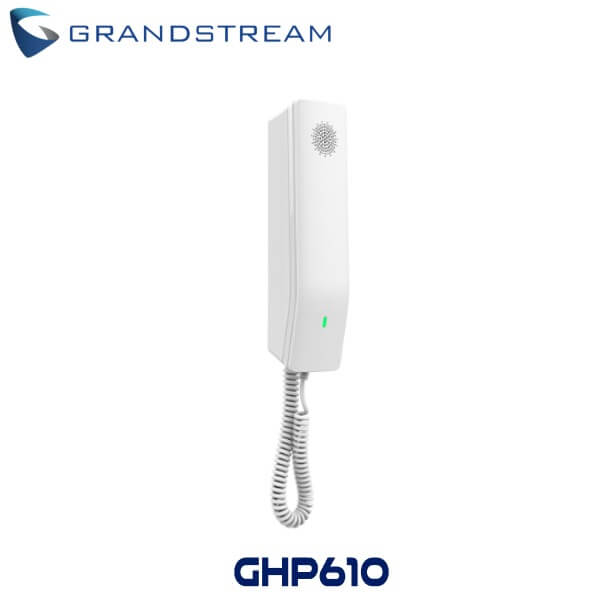

Grandstream GHP610 IP Phone Jeddah

The Grandstream GHP610 Jeddah is a compactly designed IP Phone that comes fitted with numerous advanced features that enhance the communication experience of its users in apartments, hospitals, dormitories, and many other areas. It is equipped with 2 SIP lines, 3 programmable keys, and 10 speed dial keys. The GHP610 also has a HD speaker that ensures voice clarity during communication.

The Grandstream GHP610 Jeddah is offered in two different models with integrated dual-band Wi-Fi support including (GHP610W and GHP611W). It is designed to support 3-way voice conferencing, and is equipped with an advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. What’s more, the GHP610 also supports full-band OPUS voice codec.

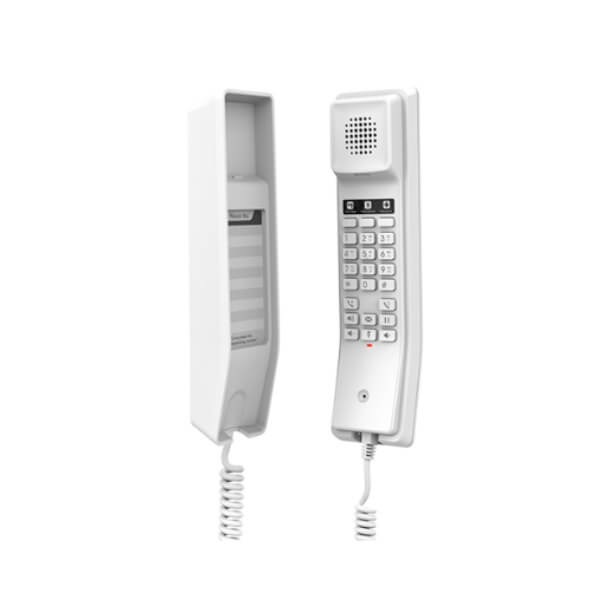

The GHP Series is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints. Thanks to a compact design that can be easily used on a desktop or wall-mounted, the Grandstream GHP610 Jeddah and GHP611/GHP611W are ideal for hotel deployments as well as many other similar environments.

Features

  • 2 SIP Accounts, 2 Lines
  • GDMS online device management and provisioning
  • 3-way audio conferencing for easy conference calls
  • Integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac (GHP610W & GHP611W only)
  • Includes one 100Mbps network port with PoE (GHP610 & GHP611 only)
  • Speed dial label and swappable faceplate to allow for easy customization
  • Hearing Aid Compatibility (HAC)
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage

Technical Specs

Protocols/Standards

  • SIP : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, TLS, SRTP
  • Network : IPv4, IPv6, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, SSH, TFTP,
    NTP, STUN, LLDP, TR-069, 802.1x
  • Network Interfaces : One auto-negotiation 10/100 Mbps ethernet port integrated PoE Class 2 (GHP610/GHP611)
    Wi-Fi GHP610W/GHP611W integrated dual-band 2.4GHz & 5GHz 802.11 a/b/g/n/ac
  • Feature Keys : 23 keys, including 3 programmable keys, 12 Standard Phone Digits keys (0-9 : speed dial keys
    configuration on web page, *, #), 5 Function keys (Flash, Redial, Hands-free, Voice Mail, Hold), 3
    Volume Control keys, Up/Down/Mute(with red color LED)
  • HD Audio : One HD handset support for wide band audio
    Voice Conferencing 2 SIP accounts and lines, up to 3-way conference
  • Voice Codecs and Capabilities : Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, and full band
    OPUS. In- band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC,
    AJB.
  • Telephony Features : Dial, Answer, Transfer, Conference, Redial, Flash ,Hands-free, Voice Mail (with the server) Hold /Unhold, Mute /Unmute, flexible dial plan, Speed dial server redundancy & fail-over Call out.
  • Advanced Features
    • Support for multicast paging and E911 service
    • Support for advanced jitter-resilience algorithm
    • Supports GDS Door Opening
    • Wall Installation 1 Wall Mountable Base
    • QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security : Secure boot, random default password, unique security certificate per device, administrator
    level passwords, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access
    control
  • Multi-language English and Chinese : Upgrade/Provisioning Firmware upgrade via FTP/TFTP / HTTP / HTTPS, fast boot in 15 seconds, mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file
  • Power & Green Energy Efficiency
    • Universal power adapter (GHP610W/GHP611W) :
    • Input : 100~240Vac 50~60Hz
    • Output : 12V/0.5A(6W)
  • Temperature and Humidity
    • Operation : 0°C to 40°C
    • Storage : -10°C to 60°C
    • Humidity : 10% to 90% (Non-condensing)
    • Package Content GHP61X phone, handset with cord, base, universal power supply (GHP610W & GHP611W),
  • Quick Installation Guide : Color White (GHP610 & GHP610W), Black (GHP611 & GHP611W)
  • Physical
    • 211mm(L)*53mm(W)*44mm(H) (with handset)
    • Unit weight : 300g (GHP610/GHP611), 350g (GHP610W/GHP611W US),
      360g (GHP610W/GHP611W World)
    • Package weight : 445g (GHP610/GHP611), 515g (GHP610W/GHP611W US),
      525g (GHP610W/GHP611W World)
  • GHP610 & GHP611 Compliance
    • FCC : Part 15 Subpart B, Class B; Part 68. 316/317.
    • CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1.
    • UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1.
    • RCM : AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004, AS/CA S040.
    • IC : ICES-003; CS-03 Part V.
  • GHP610W & GHP611W Compliance
    • FCC : Part 15 Subpart B, Class B; Part 15 Subpart C,15.247; Part 15 Subpart E,15.407; Part 68.
      316/317.
    • CE : EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 301489-1\-
      17; ETSI EN 300 328; ETSI EN 301 893; EN 50360; EN 50566; EN 50663; EN 62209-1; EN 62209-2;
      EN 62479; EN IEC 62311.
    • UKCA : BS EN 55032; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN 62368-1;
      ETSI EN 301489-1\-17; ETSI EN 300 328; ETSI EN 301 893; BS EN 50360; BS EN 50566; BS EN
      50663; BS EN 62209-1; BS EN 62209-2; BS EN 62479; BS EN IEC 62311.
    • RCM : AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004; AS/CA S040.
    • IC : RSS-247; RSS-Gen; RSS-102; ICES-003; CS-03 Part V.
