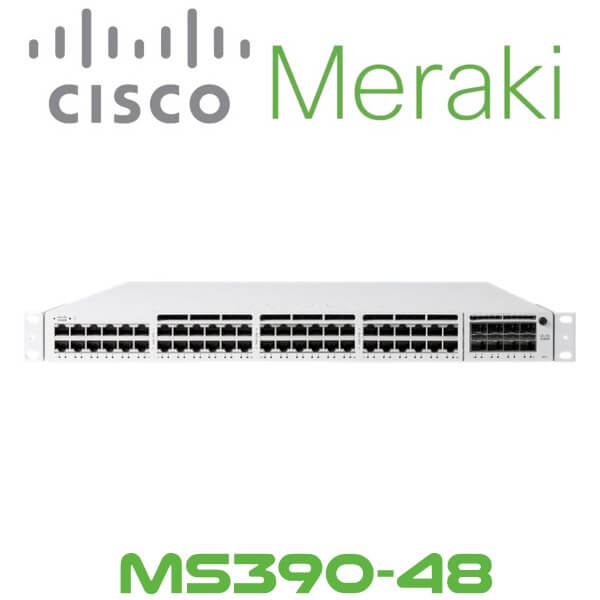

Meraki MS390-48 Network Switch Jeddah
The Meraki MS390-48 Jeddah addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. The MS390-48 delivers resiliency with fast stack convergence and StackPower. The Meraki MS390-48 Jeddah provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Meraki MS390-48 Jeddah is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.
Features:
- 48 x gigabit ethernet interfaces
- 256 Gbps of switching capacity
- Layer-3
- 40G or 10G modular uplink options on all models
- Dual Dedicated 120G Hardware Stacking Ports
- StackPower Management and Ethernet Switching Capabilities
- Physically stack up to 8 switches with 480 Gbps of stacking bandwidth
- Secure Connect * (Available in a future software release)
- Adaptive Policy * (Available in a future software release, Advanced License required)
Technical Specifications
| General |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Switching capacity: 256 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 190.48 Mpps |
| MAC Address Table Size | 32K entries |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP |
| Remote Management Protocol | DHCP, IPv4, IPv6, RSTP, RADIUS |
| Authentication Method | RADIUS |
| Features | - Auto-negotiation
- IGMP snooping
- Syslog support
- Port mirroring
- E-mail alert
- Broadcast Storm Control
- Per-VLAN Spanning Tree (PVST)
- DHCP snooping
- Access Control List (ACL) support
- Quality of Service (QoS)
- DHCP server
- Uni-Directional Link Detection (UDLD)
- DHCP relay
- Port Security
- Hot swappable fan
- Cisco StackPower technology
- Crossover detection
- Cloud managed
- Role-Based Access Control (RBAC)
- Root Guard
- Loop Guard
- MAC Access Bypass (MAB)
- BPDU Guard
- Cisco Discovery Protocol (CDP)
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Expansion / Connectivity |
| Interfaces | - 48 x 1000Base-T RJ-45
- 2 x network stack device
- 1 x management
|
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 350 Watt |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| Power Consumption Operational | 109.9 Watt |
| Power Consumption Stand by | 83.9 Watt |
| Miscellaneous |
| Rack Mounting Kit | Included |
| MTBF | 305,870 hours |
| Compliant Standards | - CISPR 22 Class A
- CISPR 24
- EN 61000-3-2
- EN 61000-3-3
- EN55024
- AS/NZS 60950-1
- ICES-003 Class A
- RoHS
- UL 60950-1
- IEC 60950-1
- EN 60950-1
- CNS 13438
- EN 300 386 V1.6.1
- EN 55022 Class A
- FCC CFR47 Part 15 A
- KN32, KN35
- EN 55032
- CISPR 32 Class A
- CAN/CSA-C22.2 No. 60950-1
- VCCI-CISPR 32:2016 Class A
- TCVN 7189 Class A
- TCVN 7317
|
| Dimensions & Weight |
| Width | 17.5 in |
| Depth | 17.7 in |
| Height | 1.7 in |
| Weight | 16.42 lbs |
| Manufacturer Warranty |
| Service & Support | Limited warranty – replacement – lifetime – response time: next day |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 95% |
