Description

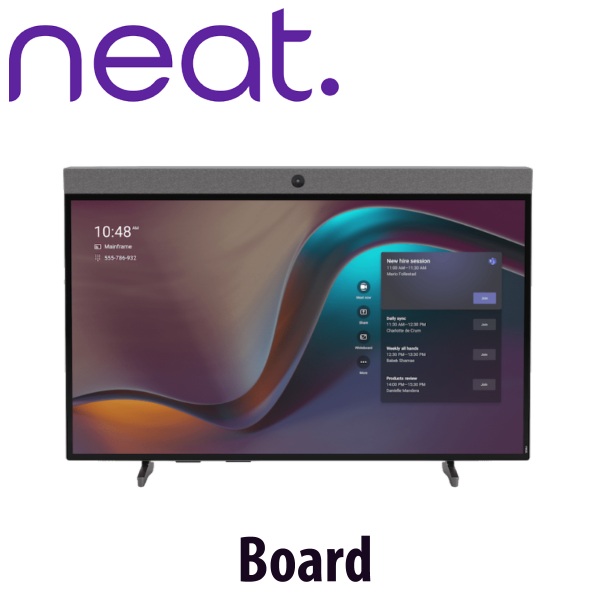

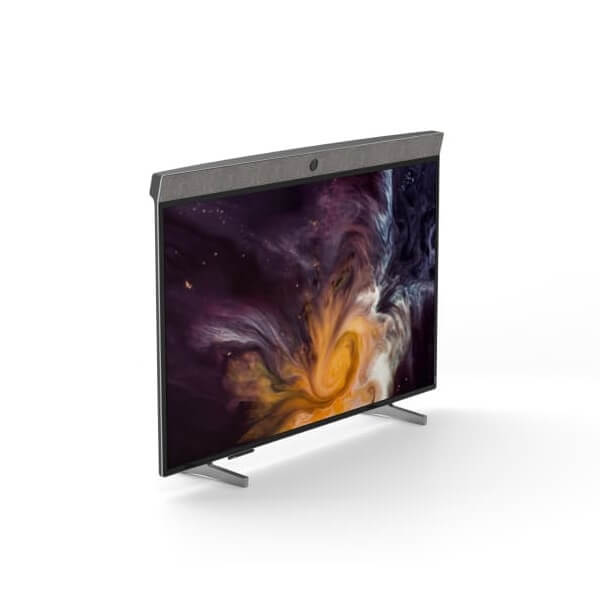

Neat Board Multi-touch Screen Jeddah

Neat Board Jeddah is the complete meeting room package for Zoom or Microsoft Teams in a simple and elegant all- in-one device. With its immersive 65-inch multi-touch screen, powerful audio system and versatile wide- angle camera, Neat Board Jeddah ensures you see and hear everything so vividly up close it’s almost as though those on screen are right there in the room with you.Beyond video meetings and wireless content sharing,Neat Board Jeddah enables your imagination to roam free thanks to annotations and whiteboarding and comes with Neat Marker, meaning you don’t even have to touch the screen with your fingers.

Neat Board Jeddah Features

Simple set-up

Neat Board Jeddah is remarkably easy to install and set up.We’ve included everything you need in the box. It comes with a table stand, 5m ethernet cable, 3m power cord and a pair of Neat Markers, so two people can sketch or write simultaneously. Additionally, you can buy a customized Neat wall mount or floor stand,and if required, wheels for the floor stand, giving you free mobility between rooms.

Just works

Neat Board Jeddah responds to your presence, automatically waking up the moment you walk in the room. With just one tap, you can wirelessly share your screen, start a meeting or mark something up. The large multi-touch screen is perfect for taking notes, organizing thoughts, and providing quick visual feedback, whether people are together in-person, video or both. What’s more, you can add Neat Pad as a controller to start your meetings, hit mute and more without having to get up, or as a scheduler for optimal room management, elevating your Neat Board Jeddah system further. In addition, you can seamlessly share audio and visual content via an HDMI cable, and Neat Board Jeddah auto releases the room when you leave.

More audio, fewer distractions

Neat Audio incorporates advanced audio capabilities that enhance human vocal pickup and removes distracting noises like a fan or air conditioning. It also eliminates any garbled ‘double-talk’ issues where two people talk at once, so your conversations can flow more naturally. At the same time, Neat Boundary enables you to set the width and depth of your meeting space to avoid the camera accidentally detecting, auto-raming and tracking anyone not involved in your video call. So, if you’re in an office with glass walls and someone outside walks past or people are standing around, the camera ignores their presence. Likewise, if you’re in an open-plan office, the device won’t be confused by other activities happening around you. You can create a virtually closed-off zone.

Fully managed and supported

Neat removes complexities and threats thanks to our secure, single-purpose hardware devices, meaning no stressing about passwords and patches. Plus, you can install all the latest upgrades with just one click.

Specifications

General

• 65-inch capacitive multi-touch LED screen
• Ultra HD 4K (3840 x 2160 screen resolution)
• 16 : 9 aspect ratio
• Anti-glare and anti-fingerprint coating
• Camera LED
• System LED
• Ambient light sensor
• 2 × Neat Marker (passive)
• Table stand

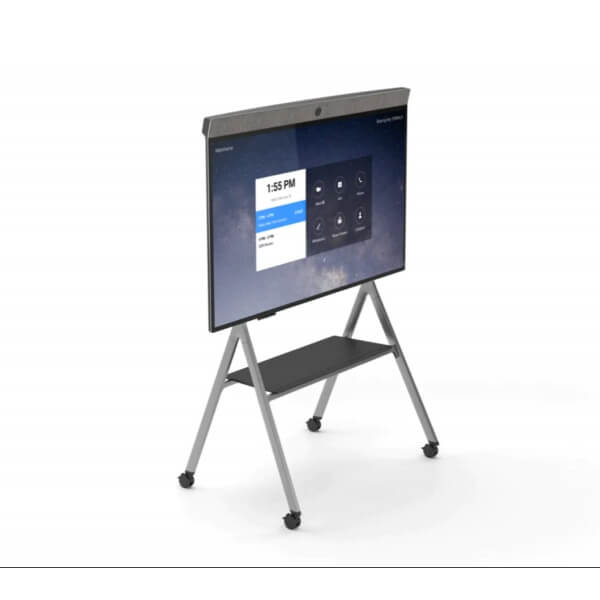

• Floor stand (optional)
• Wall mount (optional)
• Neat Pad controller (optional)
• Neat Pad scheduling display (optional)
• BYOD mode (USB passthrough)
• Native support for Zoom Rooms
• Native support for Microsoft Teams Rooms on Android
• Sensors for temperature, humidity, CO2 and VOC ^(*)

Video

• 4x digital zoom (optional 8x digital zoom)
• Fixed lens, infinite focus
• F-value : 2.8
• 4056*3040 (12 MP) capture resolution
• 120 degrees horizontal field of view
• Automatic people framing
• Hardware accelerated video encode and decode
• Distortion correction
• Noise reduction
• Chromatic aberration correction
• Automatic white balance and color correction

Audio

• Speaker box for maximum tonal range with minimal distortion
• Opposing drivers for vibration cancellation
• Dedicated wide-angle ultrasonic tweeter
• 3 sensor mics
• 5 beamforming microphones angled in an end-fire array
• Hardware-accelerated audio processing (NAP)
• Echo cancellation
• Noise suppression
• Automatic gain control
• Dereverberation

Electrical and environmental requirements

• 100-240V ~ 50/60Hz 2.5A
• Ambient operating temperature : 32° to 95° F (0° – 35° C)
• Storage temperature : -4° to 140° F (-20° to 60° C)
• Relative humidity : 10% to 90%
• Built-in power supply

Networking and ports

• WiFi
• Bluetooth for Proximity Join in Microsoft Teams
• AC Power (internal power supply)
• Ethernet
• USB-C for BYOD mode (USB passthrough)
• HDMI-in for sharing in Zoom or Microsoft Teams (1080p)
• HDMI-in (4K)

Size and weight

• Table stand
• Width : 58.1 inches (1476 mm)
• Height : 39.5 inches (1003 mm)
• Depth : 13.8 inches (350 mm)
• Weight : 102.6 pounds (46.5 kg)
