Description
Tplink MC210CS Gigabit Media Converter Jeddah

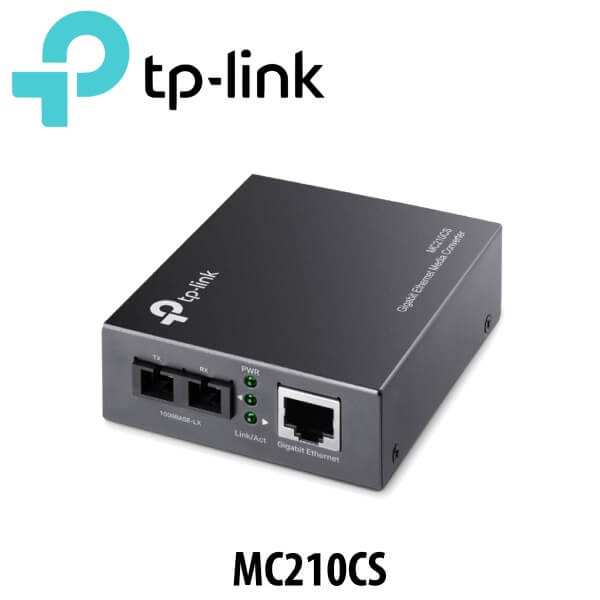

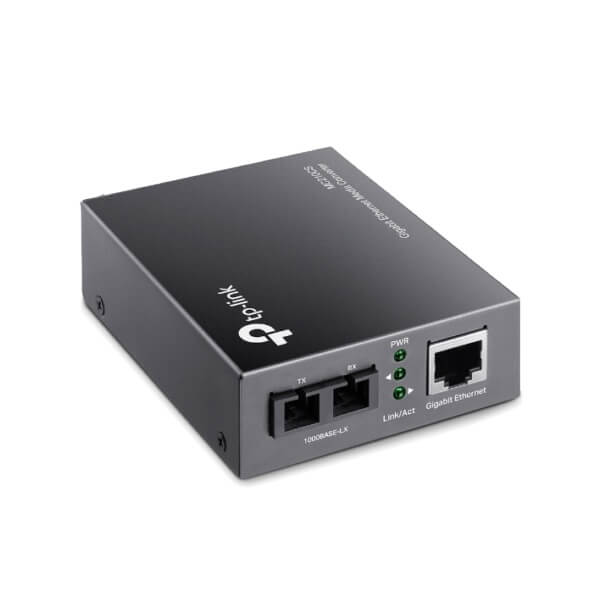

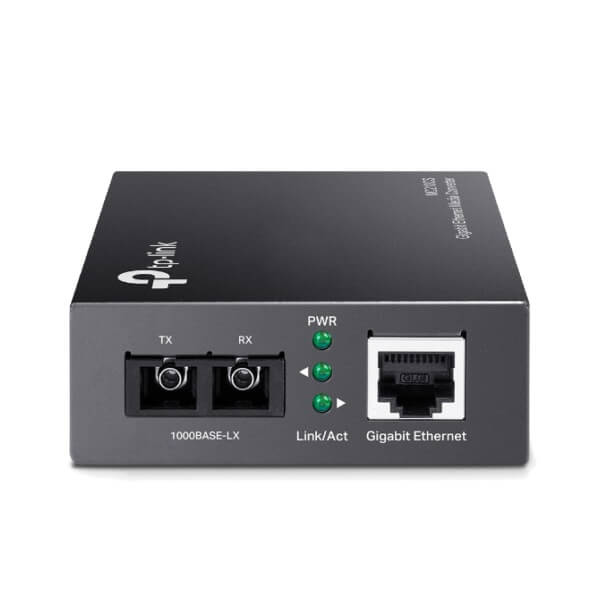

The Tplink MC210CS Jeddah Gigabit Single-Mode Media Converter from TP-Link lets you utilize both copper and fiber Gigabit cables in your network. It is designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. It works at 1310nm wavelength with single-mode fiber cable utilizing the SC-type connector. You can use this converter as a stand-alone unit or with an optional TP-link chassis. The MC210CS supports longwave (LX) laser specification and extends the maximum fiber distance to 9.3 miles.
Features
- Tplink MC210CS works at 1000 Mb/s for the TX port and FX port
- Supports single-mode fiber connection
- Tplink MC210CS supports Auto-MDI/MDIX on TX port
- Extends maximum fiber distance to 9.3 miles
- Complies with IEEE 802.3i, 802.3u, 802.3ab, and 802.3z
- 1310nm wavelength on both transmission and reception of data
- Tplink MC210CS has LED indicators that let you easily monitor network activity
- External power supply included
Technical Specs
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 20km |
| Ports |
|
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T |
|
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
