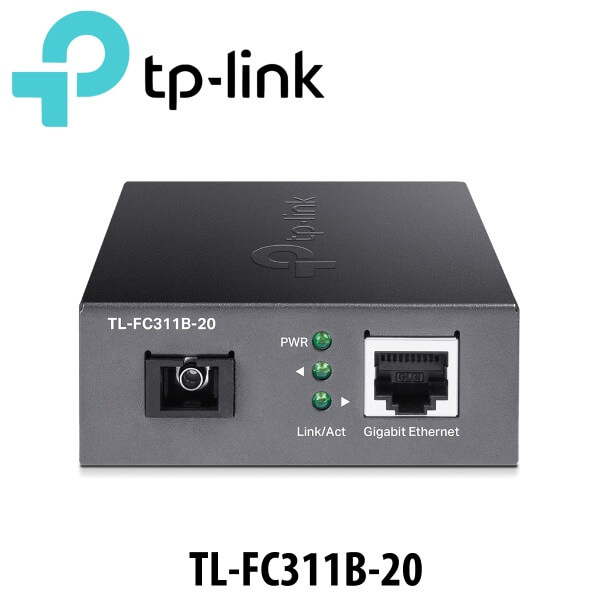

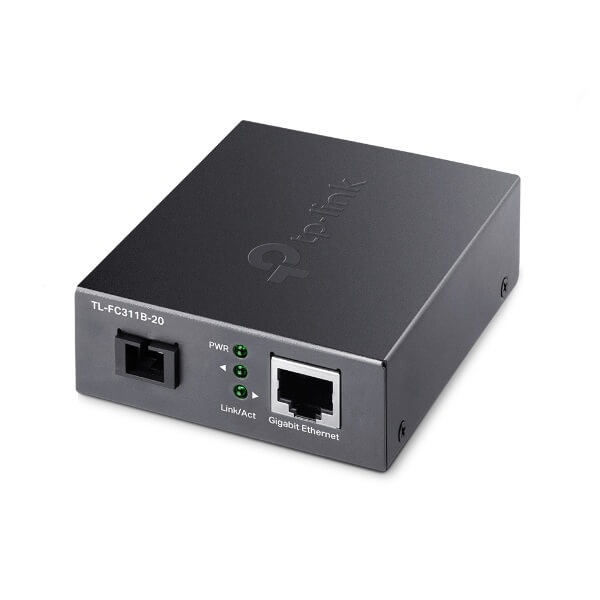

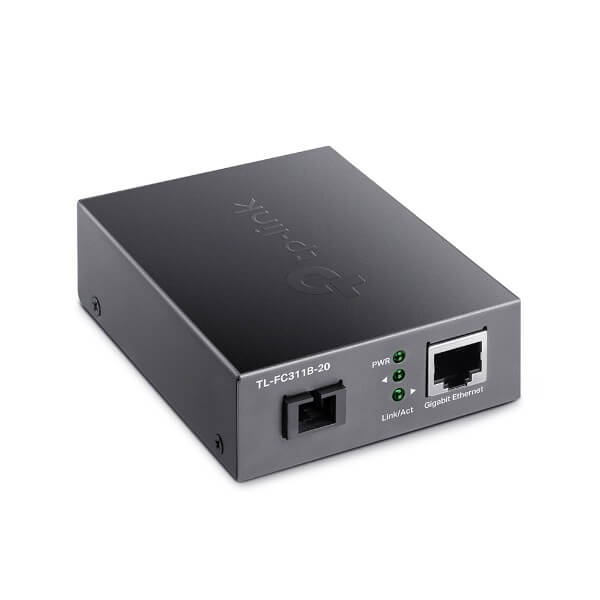

Tplink TL-FC311B20 Gigabit Media Converter Jeddah
With theTplink TL-FC311B20 Jeddah Gigabit WDM Media Converter, you can convert between Gigabit Ethernet RJ45 electrical signals and optical signals through a Gigabit SC fiber port. Designed to support long-distance video surveillance and other data transmissions, the TL-FC311B-20 has a range of up to 12.4 miles over a 9/125µm single-mode fiber cable while using up to 328′ long Cat 5/5e Ethernet cables with the RJ45 port. The Tplink TL-FC311B20 Jeddah transmits at a frequency wavelength of 1310nm and receives data at 1550nm, which complements the TP-Link TL-FC311A-20 WDM Media Converter. Half- and full-duplex modes are automatically negotiated.
The Tplink TL-FC311B20 Jeddah is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Quick Features
- Ethernet 1000Base-SC, Ethernet 1000Base-T, WDM Cabling
- Supports Gigabit Ethernet Networking
- Data Transfer Speeds up to 1Gbps
Specifications
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0ËšC to 50ËšC (32ËšF to 122ËšF) |
| Storage Temperature | -40ËšC to 70ËšC (-40ËšF to 158ËšF) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm) |
| Wave Length |
|
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber |
| OTHERS | |
| Package Contents |
|
