Description

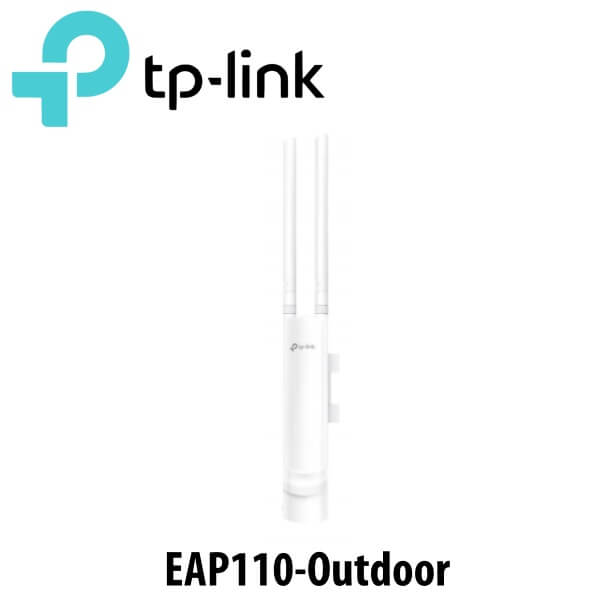

Tplink EAP110-Outdoor Access Point Jeddah
With special design of its antenna, appearance, power options and installation methods, Tplink EAP110-Outdoor Jeddah can perfectly fit for different scenarios both indoors and outdoors.
Features
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2×2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Supports management vlan for an enhanced network management
Technical Specs
| HARDWARE FEATURES | |
|---|---|

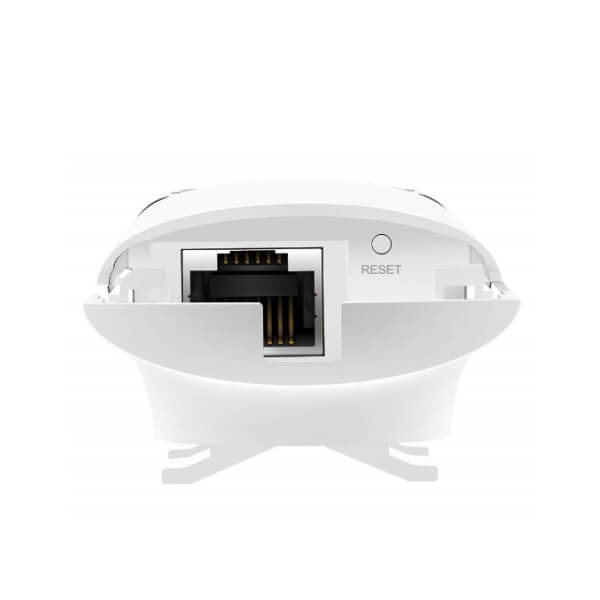

| Interface | 1 × Fast Ethernet (RJ-45) Port (Support Passive PoE) |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 3.1 W |
| Dimensions ( W x D x H ) | 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm) |
| Antenna Type | 2 × 3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |

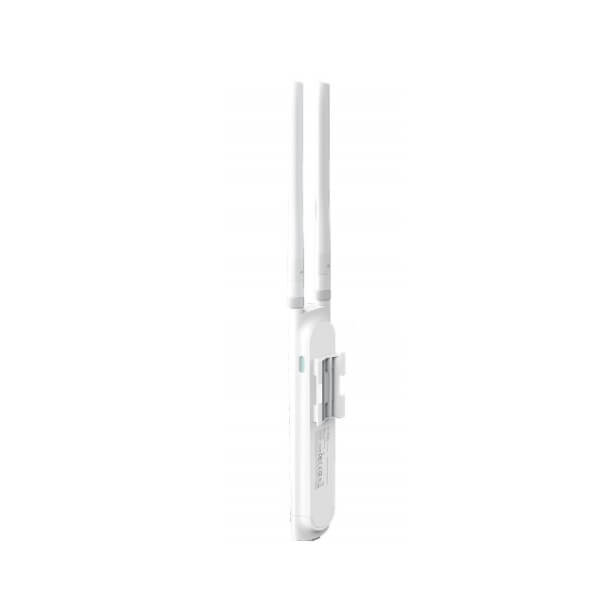

| Mounting | Pole or wall mounting (mounting kit included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate |
|
| Transmit Power | < 27dBm |
| Wireless Functions |
|
| Wireless Security |
|
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
|
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local and Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents |
|
| Environment |
|
